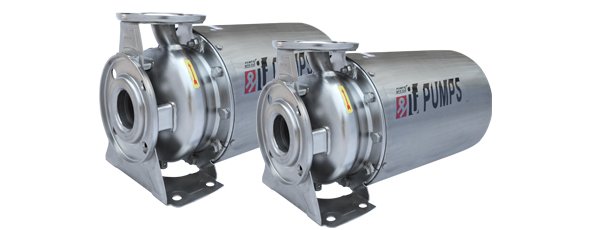

CP series pump

CP Series:

Features:
  • Pump case adopt new manufacture technique as hydro forming, a volute fluid- flow de sigh to achieve more efficiency.
  • A widely applications to transfer different mediums.
  • Motor drawn out from pump design is easy for taking off the impeller without piping removal.
  • Standard DIN flange connection.
  • Reliable construction and compact design.
  • Wide performance scope.
  • Wet-end is all made from SUS304 material.
Performance Curves:
Model
Power p2 (kW)
Flow Q(m3/h)
Head H(m)
CP 50-32-160/1.1
1.1
12.5
18
CP 50-32-160/1.5
1.5
12.5
22
CP 50-32-160/2.2
2.2
12.5
28
CP 50-32-200/3.0
3.0
12.5
33
CP 50-32-200/4.0
4.0
12.5
45
CP 50-32-200/5.5
5.5
12.5
55
CP 65-40-125/1.5
1.5
25
14
CP 65-40-125/2.2
2.2
25
20
CP 65-40-125/3.0
3.0
25
25
CP 65-40-160/4.0
4.0
25
30
CP 65-40-200/5.5
5.5
25
38
CP 65-40-200/7.5
7.5
25
48
CP 65-40-200/11
11.0
25
63
CP 65-50-125/3.0
3.0
50
13
CP 65-50-125/4.0
4.0
50
18
CP 65-50-160/5.5
5.5
50
25
CP 65-50-200/7.5
7.5
50
32
CP 65-50-200/9.2
9.2
50
40
CP 65-50-200/11
11.0
50
48
CP 65-50-200/15
11.0
50
58
CP 65-50-200/18.5
18.5
50
68

Applications:
  • Civil, agricultural and Industrial water supplying system.
  • Making wine and Food system.
  • Central heating and air conditioner system.
  • Fire extinguisher system.
  • Main pipe pressurizing.
  • Cooling tower.
  • Cleaning system.
  • Swimming pool.
  • Transporting industrial liquid.
  • Draining and irrigating.

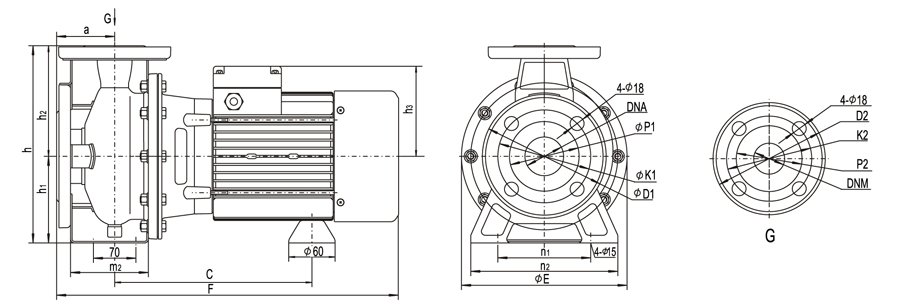

Installation Struction (1.1~9.2kW)
CP Series
Model
Power
P2 (kW)
Φ E
F
h
h1
h2
h3
a
m2
n1
n2
C
Φ D1
Φ k1
Φ P1
Φ D2
Φ K2
Φ P2
DNA
DNM
CP 50-32-160/1.1
1.1
210
395
255
112
143
134
80
115
160
190
215
165
125
96
140
100
76
50
32
CP 50-32-160/1.5
1.5
210
395
255
112
143
134
80
115
160
190
215
165
125
96
140
100
76
50
32
CP 50-32-160/2.2
2.2
210
428
255
112
143
119
80
115
160
190
245
165
125
96
140
100
76
50
32
CP 50-32-200/3.0
3.0
300
460
340
160
180
119
80
118
190
240
245
165
125
96
140
100
76
50
32
CP 50-32-200/4.0
4.0
300
470
340
160
180
148
80
118
190
240
216
165
125
96
140
100
76
50
32
CP 50-32-200/5.5
5.5
300
546
340
160
180
185
80
118
190
240
276
165
125
96
140
100
76
50
32
CP 65-40-125/1.5
1.5
210
395
255
112
143
134
80
115
160
190
215
185
145
115
150
110
80
65
40
CP 65-40-125/2.2
2.2
210
425
255
115
143
119
80
115
160
190
245
185
145
115
150
110
80
65
40
CP 65-40-125/3.0
3.0
250
460
292
132
160
119
80
118
190
240
245
185
145
115
150
110
80
65
40
CP 65-40-160/4.0
4.0
250
470
292
132
160
148
80
118
190
240
216
185
145
115
150
110
80
65
40
CP 65-40-200/5.5
5.5
300
568
360
160
200
185
100
118
212
264
276
185
145
115
150
110
80
65
40
CP 65-40-200/7.5
7.5
300
568
360
160
200
185
100
118
212
264
276
185
145
115
150
110
80
65
40
CP 65-50-125/3.0
3.0
250
455
292
132
160
119
80
115
190
240
245
185
145
115
165
125
96
65
50
CP 65-50-125/4.0
4.0
250
470
292
132
160
148
80
115
190
240
216
185
145
115
165
125
96
65
50
CP 65-50-160/5.5
5.5
300
568
360
160
200
185
100
118
212
264
276
185
145
115
165
125
96
65
50
CP 65-50-200/7.5
7.5
300
568
360
160
200
185
100
118
212
264
276
185
145
115
165
125
96
65
50
CP 65-50-200/9.2
9.2
300
568
360
160
200
185
100
118
212
264
276
185
145
115
165
125
96
65
50

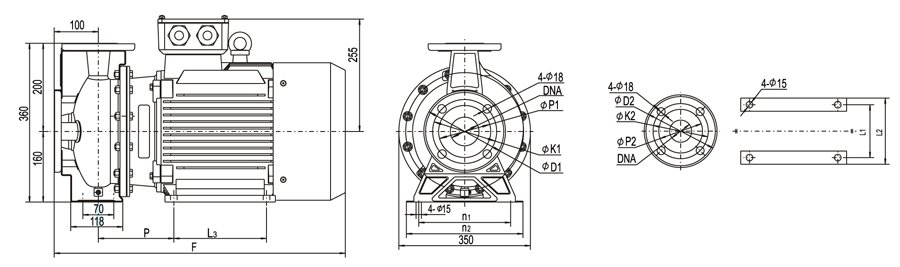

Installation Struction (11~18.5kW)
CP Series
Model
Power
P2 (kW)
F
n1
n2
P
L1
L2
L3
Φ D1
Φ k1
Φ P1
Φ D2
Φ K2
Φ P2
DNA
DNM
CP 65-40-200/11
11
670
212
264
175
254
320
210
185
145
115
150
110
80
65
40
CP 65-50-200/11
11
670
212
264
175
254
320
210
185
145
115
165
125
96
65
50
CP 65-50-200/15
15
670
212
264
175
254
320
210
185
145
115
165
125
96
65
50
CP 65-50-200/18.5
18.5
725
212
264
175
254
320
254
185
145
115
165
125
96
65
50
