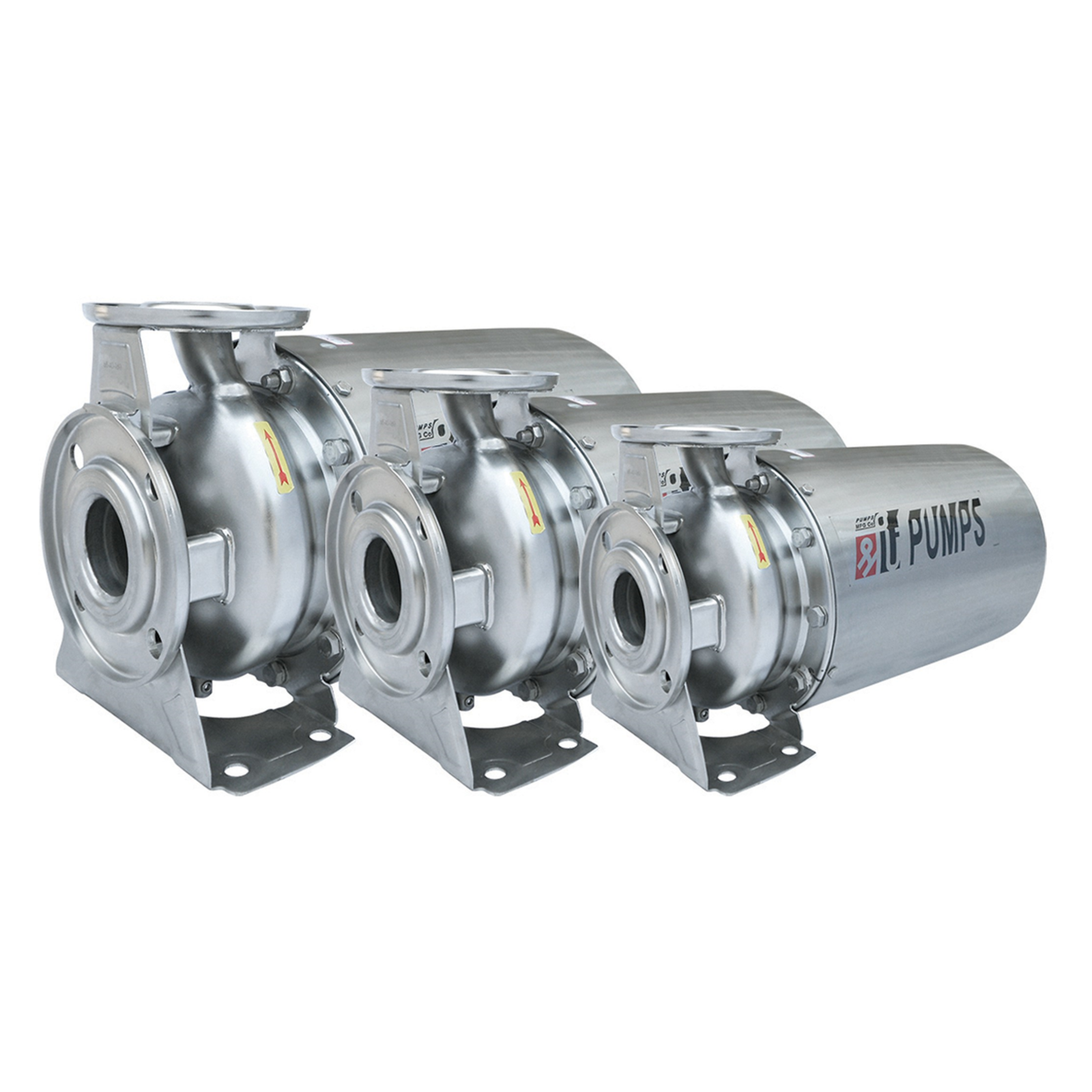

Double Mechanical Seal Pump
Cart(0)
Motor
- 2-Pole or 4-Pole asynchronous motor, Protection class IP55, Insulation class F
- Single phase motor:
- Power < 1.5kW, 220V, 50Hz
- Three-phase motor:
- Power < 4.0kW, 220V/380V, 50Hz
- Power > 5.5kW, 380V/660V, 50Hz
The Maximum of Performance
- Max flow: 70m³/h
- Max head: 70m
- Max operation pressure: 10bar
- Liquid temperature:
- Normal type: 5 ~ 70°C
- High temperature: 5 ~ 104°C
Features
- Pump case adopts new manufacturing techniques like hydroforming, with a volute fluid-flow design for more efficiency.
- Widely applicable for transferring different mediums.
- Motor design allows easy removal of the impeller without piping removal.
- Standard DIN flanges connection.
- Reliable construction and compact design.
- Wide performance scope.
- Wet-end is made entirely from SUS304 material.
Applications
- Civil, agricultural, and industrial water supplying systems
- Wine and food processing systems
- Central heating and air conditioning systems
- Fire extinguisher systems
- Main pipe pressurizing
- Cooling towers
- Cleaning systems
- Swimming pools
- Transporting industrial liquids
- Draining and irrigating
| Model | Power P2 (kW) | Flow Q (m³/h) | Head H (m) |
|---|---|---|---|
| CP 50-32-160/1.1 | 1.1 | 12.5 | 18 |
| CP 50-32-160/1.5 | 1.5 | 22 | |
| CP 50-32-160/2.2 | 2.2 | 28 | |
| CP 50-32-200/3.0 | 3.0 | 33 | |
| CP 50-32-200/4.0 | 4.0 | 45 | |
| CP 50-32-200/5.5 | 5.5 | 55 | |
| CP 65-40-125/1.5 | 1.5 | 25 | 14 |
| CP 65-40-125/2.2 | 2.2 | 20 | |
| CP 65-40-125/3.0 | 3.0 | 25 | |
| CP 65-40-160/4.0 | 4.0 | 30 | |
| CP 65-40-200/5.5 | 5.5 | 38 | |
| CP 65-40-200/7.5 | 7.5 | 48 | |
| CP 65-40-200/11 | 11.0 | 63 | |
| CP 65-50-125/3.0 | 3.0 | 50 | 13 |
| CP 65-50-125/4.0 | 4.0 | 18 | |
| CP 65-50-160/5.5 | 5.5 | 25 | |
| CP 65-50-200/7.5 | 7.5 | 32 | |
| CP 65-50-200/9.2 | 9.2 | 40 | |
| CP 65-50-200/11 | 11.0 | 48 | |
| CP 65-50-200/15 | 15.0 | 58 | |
| CP 65-50-200/18.5 | 18.5 | 68 |
