Sight View Glass
These are generally installed in the process line, to watch the process fluid with a mode to filters the same through the filter element in side of the glass holding between two flanges. The Filter Screen (0.4 mm) & element Is AISI 304 and the Soldering is also Hygienic material. The Gasket materials are food grade EPDM / Nitrile Rubber.
| Material Construction | : AISI 304, AISI 316 & AISI 316L. |
| Sizes | : From 1 to4' (25 mm to 100 mm) |
| Standards | : End connections confirming to SMS/IDF & DIN. |
| Quality Tests | : Metallurgical tests & Pressure Test |

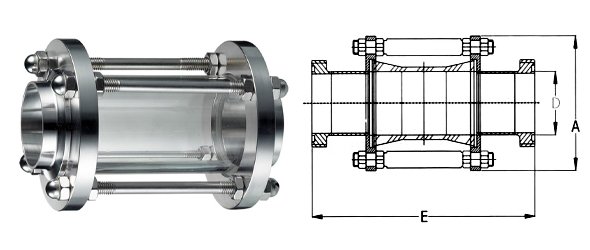

D
|
D
|
A
|
E
|
MM
|
INCHES
|
MM
|
MM
|
25.4
|
1
|
108
|
200
|
38.1
|
1 1/2
|
127
|
200
|
50.8
|
2
|
152
|
200
|
63.5
|
2 1/2
|
178
|
200
|
76.0 |
3 |
190 |
250 |
101.6 |
4 |
217 |
250 |
