SS Triclover Clamp
Triclover (also known as Clamp or Ferrule) Fittings comprise of 4 pieces clamped together to form a union, which makes for easy dissmantling of a tubing run. Parts include 2 ferrules, a clamp and seal; the ferrules are welded into the line and then sealed together with a seal and clamped closed via a wing style nut. Due to the clean nature of this union common applications include pharmaceutical, food and beverage.
The Stainless Steel Tri Clover Fittings manufactured by us are a product of designing expertise and manufacturing excellence. Each fitting has two lines or ferrules and clamps that hold them together. A gasket is provided for leak-proof sealing and placed between the lines.

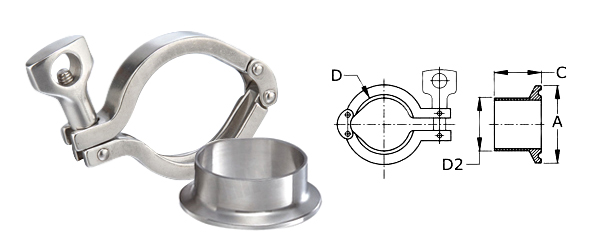

Diameter (D2) |
A
|
C
|
D
|
|
INCHES
|
MM
|
|||
1
|
25.4
|
51
|
28.5
|
53
|
1 1/2
|
38.1
|
51
|
28.5
|
53
|
2
|
50.8
|
64
|
28.5
|
66
|
2 1/2
|
63.5
|
90
|
28.5
|
92
|
3
|
76.0
|
90
|
28.5
|
92
|
4 |
101.6 |
126 |
35 |
128 |
