SS Short Bend 90°
We can offer all kinds of sanitary pipe fittings,elbow and can manufacture them according to any drawings. If you have any interest of our products,contact us to tell more details.
| Connection mode | : Welded |
| Specification | : 1/2"-4", applied to the stainless steel pipeline system |
| Material | : SS304, SS316L |
| Standard | : ISO, DIN, SMS, 3A |
| Application | : Beer, food, dairy, beverage, cosmetics, pharmacy and chemical etc industries |

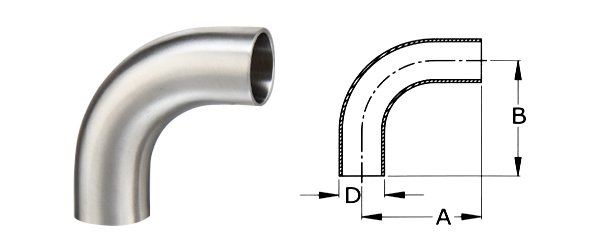

Diameter (D)
|
B |
A |
|
Inches
|
MM
|
(W.T)
|
|
1
|
25.4
|
1.6
|
80
|
1 1/2
|
38.1
|
1.6
|
105
|
2
|
50.8
|
1.6
|
130
|
2 1/2
|
63.5
|
1.6
|
160
|
3 |
76.2 |
2.0 |
190 |
4 |
101.6 |
2.0 |
200 |
